Hexagon Paver Mould Designs

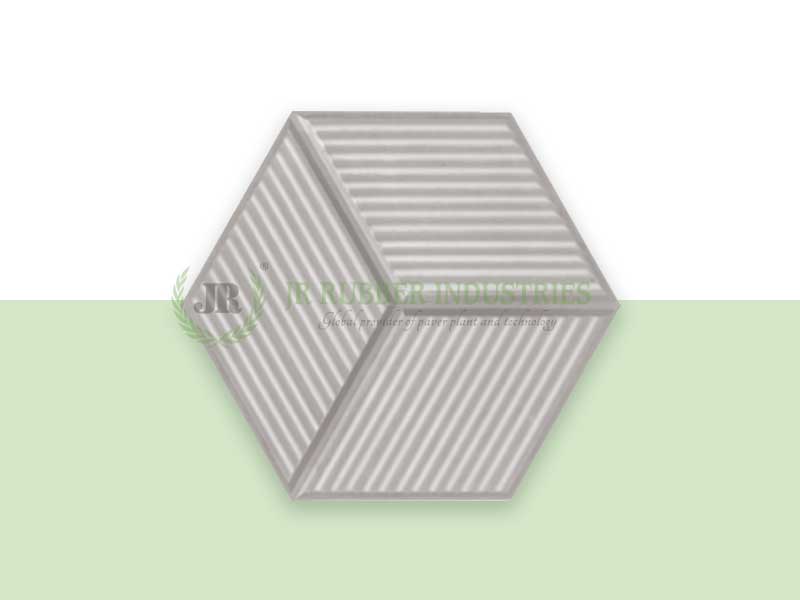

PM 7 Hexagon
| Specification | Details |
|---|---|
| Height | 60 mm |
| Area | 0.500 Sq.Ft. / 0.046 m² |
| Material | Rubber |
| Mould Weight (Approx) | 1.650 Kg. |
| Required Moulds for 1 m² | 22 Nos |
| Required Moulds for 100 Sq.Ft. | 200 Nos |
PM 70 Hexagon
| Specification | Details |
|---|---|
| Height | 60 mm |
| Area | 0.700 Sq.Ft. / 0.065 m² |
| Material | Rubber |
| Mould Weight (Approx) | 2.065 Kg. |
| Required Moulds for 1 m² | 16 Nos |
| Required Moulds for 100 Sq.Ft. | 143 Nos |

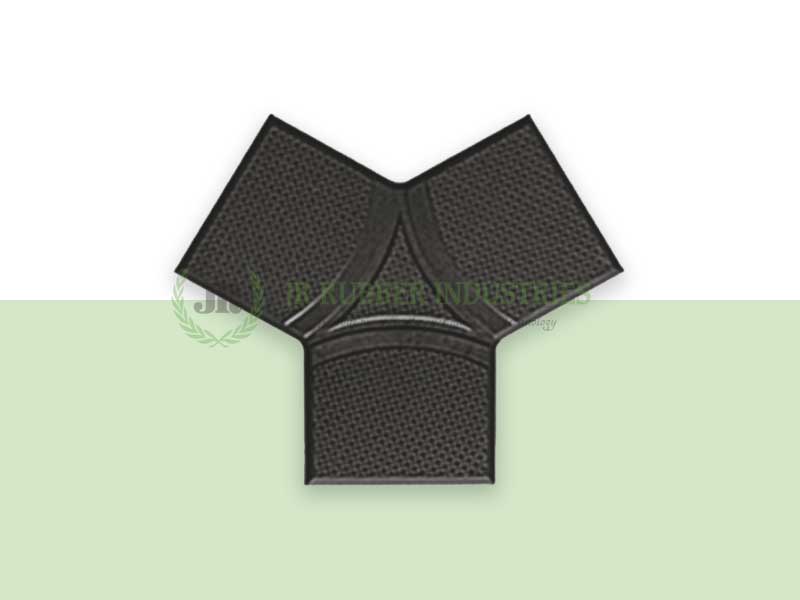

PM 71 Y2
| Specification | Details |
|---|---|
| Height | 60 mm |
| Area | 0.300 Sq.Ft. / 0.028 m² |
| Material | Rubber |
| Mould Weight (Approx) | 1.650 Kg |
| Required Moulds for 1 m² | 36 Nos |
| Required Moulds for 100 Sq.Ft. | 333 Nos |
PM 78 Zigma
| Specification | Details |
|---|---|
| Height | 60 mm |
| Area | 0.500 Sq.Ft. / 0.046 m² |
| Material | Rubber |
| Mould Weight (Approx) | 2.150 Kg |
| Required Moulds for 1 m² | 22 Nos |
| Required Moulds for 100 Sq.Ft. | 200 Nos |
PM 112 Platinum
| Specification | Details |
|---|---|
| Height | 60 mm |
| Area | 0.700 Sq. Ft. / 0.065 m² |
| Material | Rubber |
| Mould Weight (Approx) | 2.650 Kg |
| Required Moulds for 1 m² | 16 Nos |
| Required Moulds for 100 Sq.Ft. | 143 Nos |
PM 179 Hexagon 3
| Specification | Details |
|---|---|
| Height | 60 mm |
| Area | 0.700 Sq.Ft. / 0.065 m² |
| Material | Rubber |
| Mould Weight (Approx) | 2.650 Kg. |
| Required Moulds for 1 m² | 16 Nos |
| Required Moulds for 100 Sq.Ft. | 143 Nos |
PM 307 Superhex
| Specification | Details |
|---|---|
| Height | 60 mm |
| Area | 0.400 Sq.Ft. / 0.037 m² |
| Material | Rubber |
| Mould Weight (Approx) | 1.700 Kg. |
| Required Moulds for 1 m² | 27 Nos |
| Required Moulds for 100 Sq.Ft. | 250 Nos |
